The acr-u is a universal remote level control which can be inserted into any line-level signal path. The acr-u can be surface or custom-mounted to add subwoofer level control, zone level control, total system volume control, and more to your audio system. Installation is simple and no power is required.

Included is a half meter cat5e cable. Any cat5e cable up to 300 feet in length may be used. This means the acr-u remote can be mounted far from the acr-u hub and all rca connections can remain short, ensuring low noise and excellent signal integrity.

Features

• Precise and tactile remote level control for any application
• Add volume control to line level sources
• Remote can be mounted up to 300 feet from hub

Specifications

• Inputs
  • Line level inputs: 1 (2 channels)
• Outputs
  • Line level outputs: 1 (2 channels)
• Performance
  • Insertion loss: 0.017 db
  • Attenuation range: -97 db

Weights & dimensions

• Dimensions:
  • Remote: 1.75”w x 2.0”d x 1.0”h
  • Hub (including rca jacks): 3.2″w x 2.1″d x 1.0″h
• Weight: 2.3oz (65.2g)

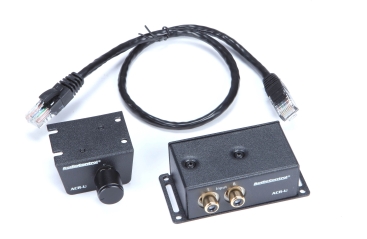

  • In the box: acr-u remote, acr-u hub, 0.5 meter cat5e cable, quick start guide, warranty
