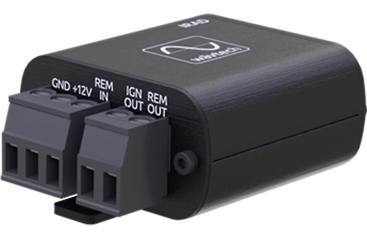

Ignition/ Remote Generator + Delay
The IRAD is the ultimate installation tool. It provides solutions to 3 very specific problems faced in today’s installations. This easy to program device allows you to add a switched 12-volt output, a remote output with adjustable delay and a relay/solenoid control to overcome the issues created by vehicles with start/stop systems.
Automatic 12V Ignition Detection and +12V Output Generation
Generated +12V Remote Output (direct or linked to IGN)
Stop-Start Relay/Solenoid Control Mode
Independent Adjustable IGN & REM Turn-On/Off Delays
Specifications:
- Automatic Ignition detection and +12V Output Generation
- Generated +12V Remote Output (direct or linked to IGN)
- Stop-Start Relay/Solenoid Control Mode
- Independent Adjustable IGN & REM Turn-on/Off Delays
- >750mA Countinous per Output
- Locking Detachable Terminals
- Compact Aluminum Chassis
- Detachable Mouting Tabs
- Chassis Dimensions 0.79"x1.5"(20x38x38mm)
